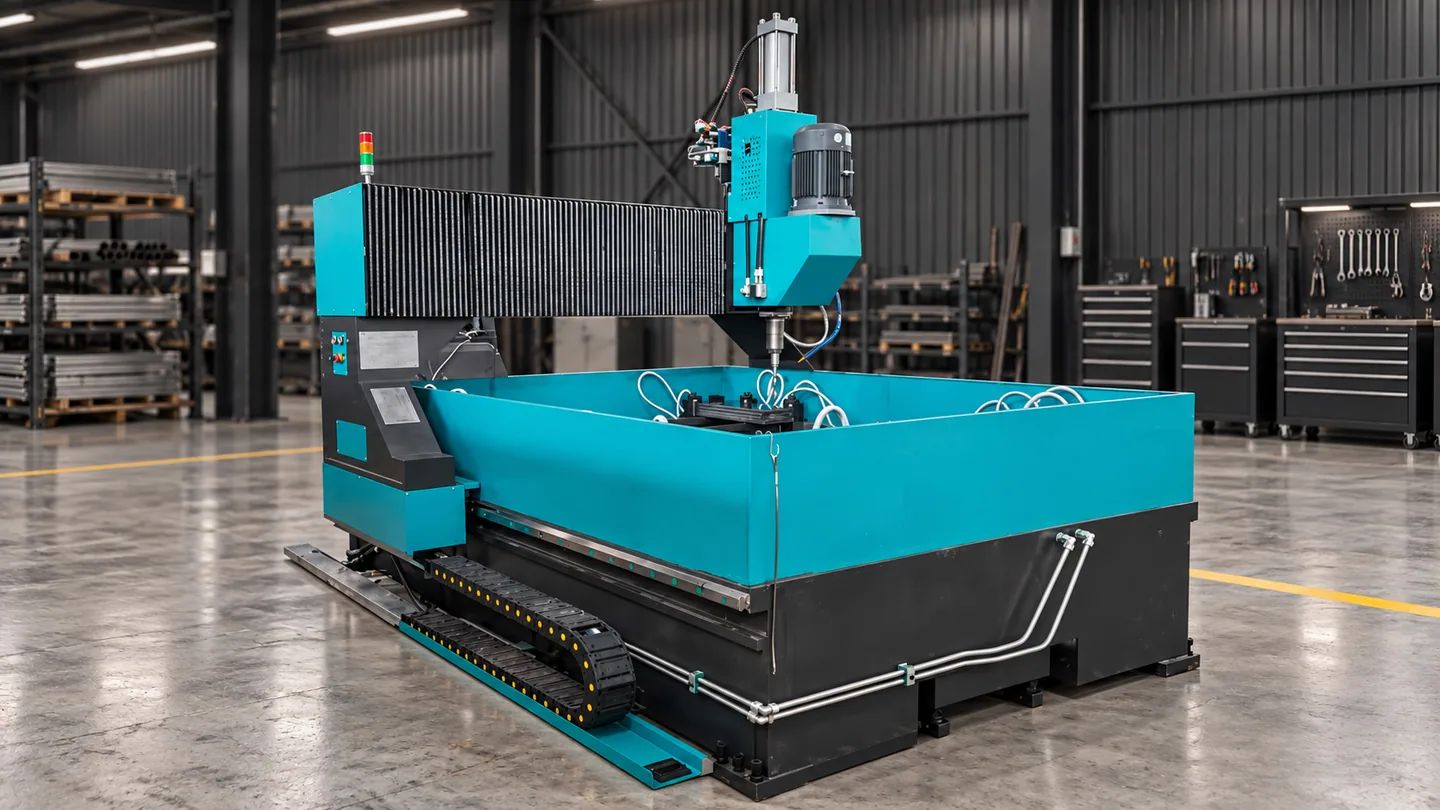

CNC drilling for flanges and metal plates. Explore documented materials and thicknesses and prepare hole sizes, positions and reference dimensions.
CNC drilling
Hole centres and diameters are specified in the drawing, then drilled into the plate at the required positions.
Each hole, in its place.
Mounting plates, flanges and industrial components. Dimensions and hole patterns define the part.
Material & dimensions.
Choose the material and dimension the drawing. We review their suitability for the process before confirming your enquiry.
- Thickness range
- 0.3–80 mm
- Made to your brief
- Drawing + material + quantity
Bring the details. We’ll start there.
These details help us understand your part from the first enquiry.
Prepare your part details ↗- 01
Show each hole diameter and its dimensioned position.
- 02
Identify the reference edges or pitch circle and central opening.
- 03
Include plate thickness, material, quantity and any required tolerances.
Before we begin.
What should a flange drawing show?
Outside and inside diameters, thickness, hole count, hole diameters and their pitch circle or positions, together with the material and quantity.
Does the listed thickness mean every hole is possible?
No. Thickness is one input. Hole size, material and geometry must also be reviewed for the individual part.
